ZB6
$1.00
High-Resolution Imaging : Equipped with a 5400-pixel RGB CCD camera for precise color detection and highly accurate sorting.
Advanced LED Illumination : Utilizes a high-reliability, long-life LED light source to enhance image clarity and ensure consistent performance over time.
Smart Software System : Intelligent algorithms and a user-friendly interface provide efficient operation and easy calibration to specific color standards.
Remote Support Capabilities : Enables remote diagnostics, debugging, and maintenance, reducing downtime and improving service response.
Food-Grade Conveyor Belt : Features a food-grade PVC conveyor belt for safe, hygienic, and smooth material handling.
Ideal for compact or mid-sized processing facilities, the ZB6 combines cutting-edge technology, durable construction, and space-efficient design to deliver long-term performance and value.
# Contact us today to learn more or request a demo.
The ZB6 Color Sorting Machine is engineered for high-precision and high-throughput processing in small to mid-scale operations. Equipped with advanced high-resolution RGB CCD sensors and a 378-channel high-speed pneumatic ejection system, it delivers outstanding accuracy in detecting and removing defective, discolored, or foreign materials. Designed for reliability and operational efficiency, the ZB6 features reduces rejection carryover—enhancing sorting accuracy and increasing product yield.
This ensures a consistently high-quality output with reduced waste and improved profitability. The system includes a 1800mm wide food-grade PVC conveyor belt, ensuring safe, hygienic, and efficient transport during the sorting process. The conveyor’s design supports smooth material handling while maintaining compliance with food safety standards.
TECHNICAL CHARACTERISTICS
IMAGE ACQUISITION SYSTEM
Made in Japan Trichromatic Toshiba CCD Sensor with 1.94 hundred Millions Pixels Per second Image.
PNEUMATIC
Japanese Make SMC Filters has been used to clean the air very Precisely.
ILLUMINATION MODULE
Made in USA OSRAM LED LIGHT with high reliability and long life.
IMAGE PROCESSING SYSTEM
Complex Intelligent Algorithm ensures higher sorting accuracy with the lowest rejection ratio.
CLOUD SYSTEM
Machine can be accessed using Mobile/Tablet in real time.
USER FRIENDLY
10" Touch Screen can be operated very easily and is user-friendly.
CORE FEATURES

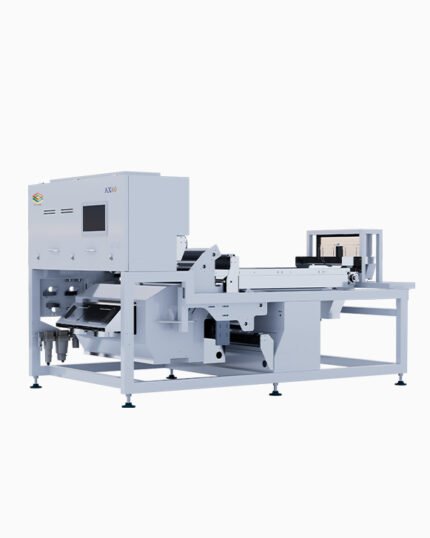

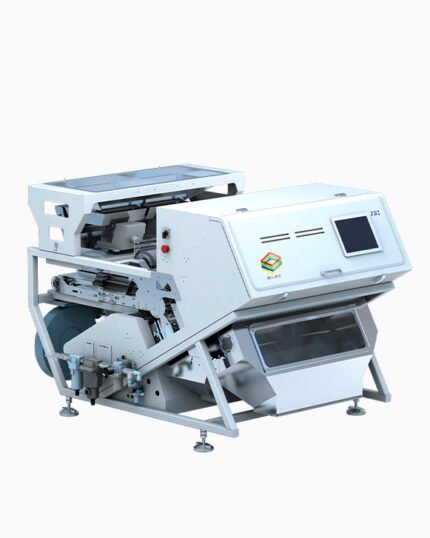

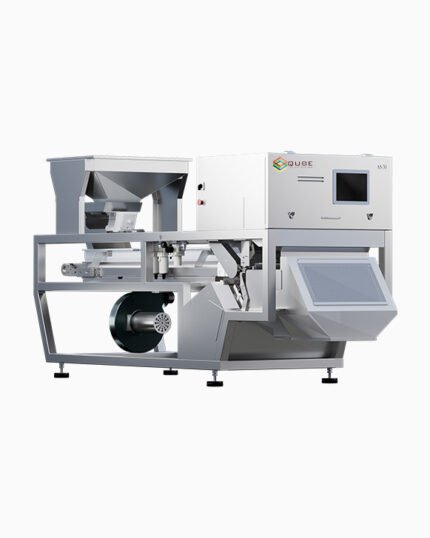

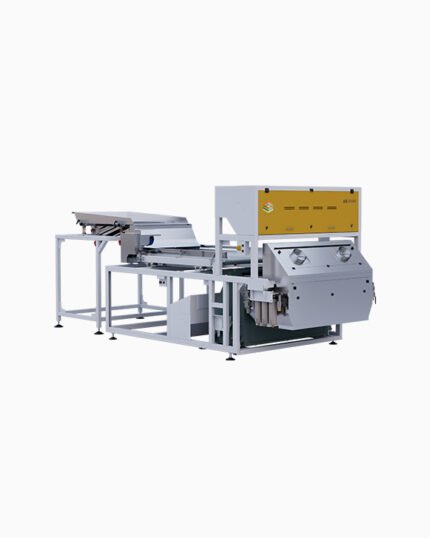

| Model | ZB2 | ZB6 | AS30 | AS60 | KX60 | KX120 |
|---|---|---|---|---|---|---|
| Optimized Carryover (BAD : GOOD) |
10:1 | 10:1 | 30:1 | 30:1 | 10:1 | 10:1 |
| Product Output (T/H) | 0.8-2 | 2-5 | 0.5-1 | 1-3 | 3–11 | 4–18 |
| Heating of Tray | Yes | Yes | Yes | Yes | Yes | Yes |
| Camera | CCD | CCD | CCD | CCD | CCD | CCD |
| Type of Selection | Per Size / Color | Per Size / Color | Per Size / Color | Per Size / Color | Per Size / Color | Per Size / Color |
| Remote Access & Control (Connectivity) | Yes | Yes | Yes | Yes | Yes | Yes |
| Net Weight (KG) | 620 | 1812 | 530 | 680 | 1050 | 1800 |
| Europe Certification | Yes | Yes | Yes | Yes | Yes | Yes |
| Type of Illumination | Led Lamp | Led Lamp | Led Lamp | Led Lamp | Led Lamp | Led Lamp |
| Power Consumption (KW) | 2.2 | 4.8 | 2.5 | 3.5 | 3 | 6.5 |
| Dimension L×W×H (CM) | 180×134×137 | 220×293×163 | 294×99×142 | 312×132×166 | 295 × 160 × 175 | 391 × 229 × 237 |
| Power Supply (V/HZ) | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ |
